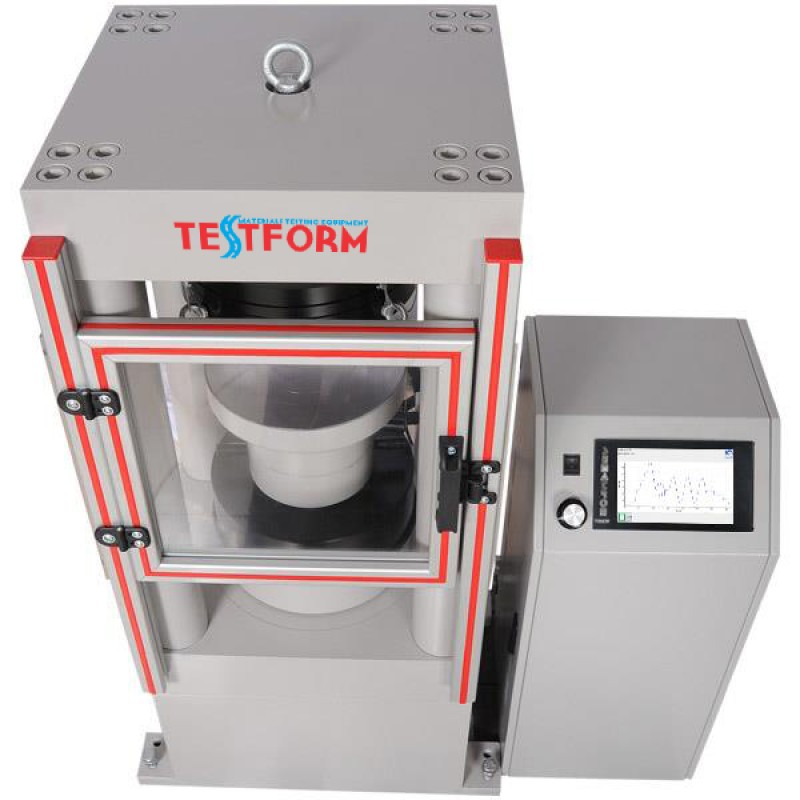

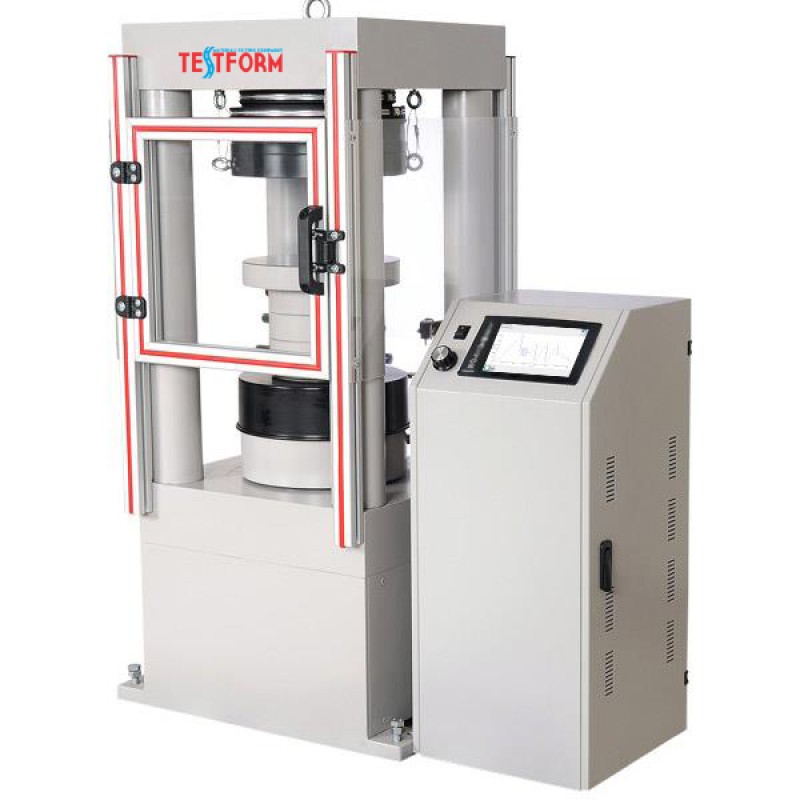

Touch Screen Controlled Instant Servo Hydraulic Compression Test Machine with Modulus Of Elasticity

EN 12390-4, BS 1881:115, DIN 51220, ASTM C39, NF P18-411, AASHTO T22

A compression test determines the behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. There are two types of frame in available as 4- Columns type or Wall type.

Hydraulic Compression Test Machine with Instant-Servo Technology has a closed - loop PID control system, it means this machine works automatically.

Available in capacities of 1000kN, 2000kN and 3000kN, (contact us for other required capacities)

4-Coulumn Frame; every column has 4 screws to adjust the frame for perfect calibration. Upper platen is ball seat unit and lower platen is constant.

It has a limit-switch attached to the front door of the machine for safety (when the door is opened machine stops working) (optional).

The controller unit supports the loading force from 0.05kN/sec. to 20kN/sec. It can also perform unloading of force with same 0.05kN/sec. to 20kN/sec pace rate.

At the end of the test process to start a new test the piston returns to default position.

Controller unit has a simple and compact configuration.

Software provides test data, results, and the load-time/stress-time graphs can be seen at LCD screen and also can be saved or not according to requirement with an specific name at the end of the test.
