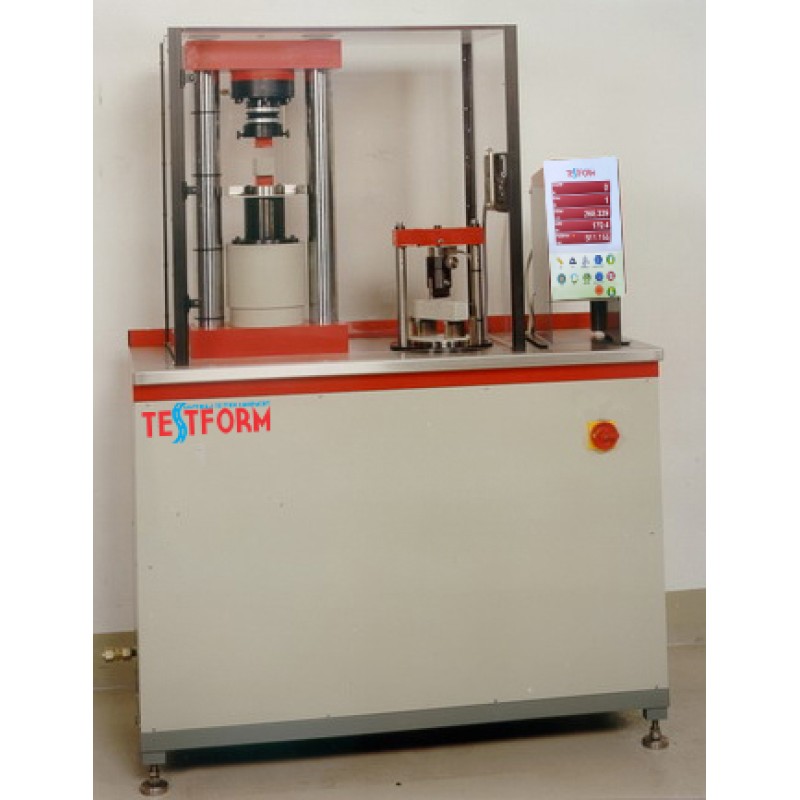

Compression - Flexural Testing Machines
- Product Code: CM182
Standards:
EN 196-1 Cement test methods - Determination of strength
EN 1348 Ceramic Adhesion Strength Tests
EN 12808-3 Compression and bending strength tests in joints
Bending and pressing tests of epoxy joints
Suitable for cutting-adhesion tests
EN 13286-41, EN ISO 679, EN 933-5, ASTM C109, ASTM C349, ASTM C348
General features
Compression test capacity: 200 kN (20 tons)
Measuring range: 2,5 kN - 200 Kn
Flwxural test capacity: 20 kN (2 tons)
Measuring range: 0,5 kN to 20 kN
40 x 40 x 40 mm pressure test equipment
40 x 40 x 160 mm bending test with aparator.
It makes the test process fully automatic, there is speed setting and software for the test report.
Loading speed during testing can be adjusted according to EN or ASTM standard
Loading Speeds:
Traction: 250 N / s +/- 50 N / s
Printing: 2400 N / sec
Bending: 50 N / sec
Cement Test Press with Cement test program
The program has Turkish and English language options
Sample, company, laboratory and test information can be entered in the program
Load-Time, Strength-Time graphs, test reports and sample reports are taken
Hydraulic Unit and Touch Screen Reading Unit
Security;
There are protection and safety covers conforming to CE directives
The device has been taken up with the upper and lower limit switches.
If the load safety limit is exceeded for any reason, the device will automatically
returns to the starting point
After the sample breaks, the piston movement stops and returns to the starting point
Calibration class is 1st class.
Power: 220-240V 1ph 50z 750W
Dimension: 700 x 400 xh 1500 mm
Weight: 310 kg approx.
